AMR METER DATA ACQUISITION
If you have installed a new metering device with a wireless communication module, or you have modified an existing meter with data interface, you may remotely monitor energy consumption. Remote method of data collection is possible via radio or cable data network.
AMR RADIO SYSTEM
AXIS Industries AMR radio system is based on radio technology operating in the 868 MHz frequency. The system is
convenient to install in objects where it is difficult to install the cable transmission lines. This is particularly important
in apartment buildings where meters are installed in the separate apartments of the users.

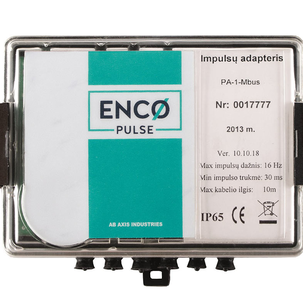

• The accounting meters are combined with radio module for data transmission.
• Meter data is collected through a network of radio antennas, the number of which depends on the dimensions
and construction parameters of the building.

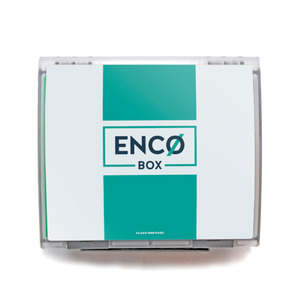

Accounting data is stored in the Concentrator/Controller, which periodically transmits meter readings to the server
database. Meter readings are available on Internet web interface.

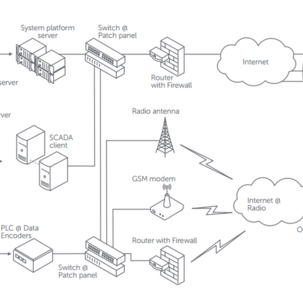

PRINCIPLE OF DATA COLLECTION
INFORMATION SYSTEM ENCO MS
MAIN FUNCTIONALITIES:
• Meter data collection using GSM or Internet from water, heat, gas and electricity meters;
• Sensor readings;
• Control circuit (heating, hot water, ventilation);
• Metering history archive management;
• Custom meter data reporting and filtering in accordance to: Object, address, meter ID and type, measurement parameter, date and time, meter errors and alarms.
EXTENDED FUNCTIONALITIES:
• Access rights and user authentication procedure;
• Security function. Registration of authorized and not authorized visits;
• Displays the current process state of the operational technical equipment in the form of symbolic circuits;
• Allows monitoring and editing of process parameters of automation in the form of symbolic circuits;
• Generates alarm incidents passed with objects trough WEB interface or SMS and e-mail;
• Process automation and control for industry.
WEB INTERFACE ENCO READER
MAIN FUNCTIONALITIES:
• Data collection using cable, GSM or Internet;
• Current, hour, day and month statistics. (Meter supplied data). Metering history archive management;
• Metering history archive management;
• Custom Meter data reporting and filtering in accordance to: Object location, address, meter ID and type, measurement parameter, date and time;
• Event status message generation.
EXTENDED FUNCTIONALITIES:
• Visualization using web browser (Web server).
